BORNRIF 33SC

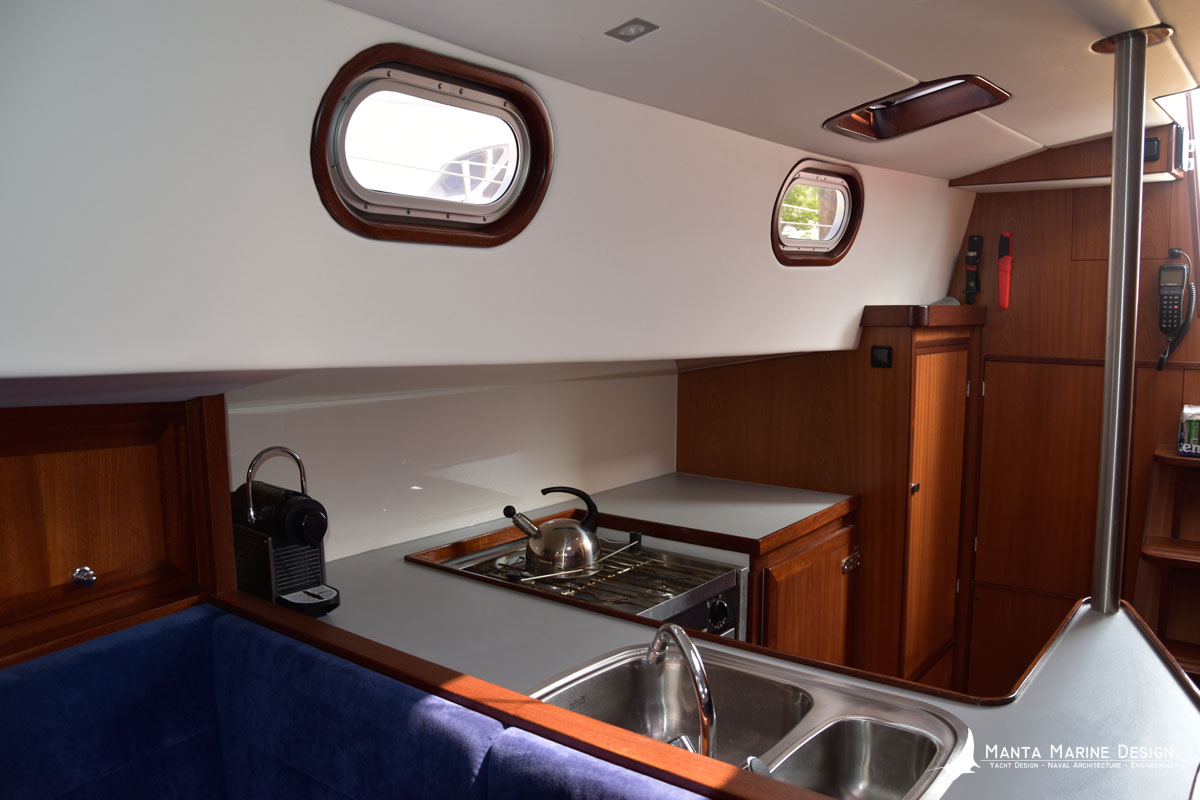

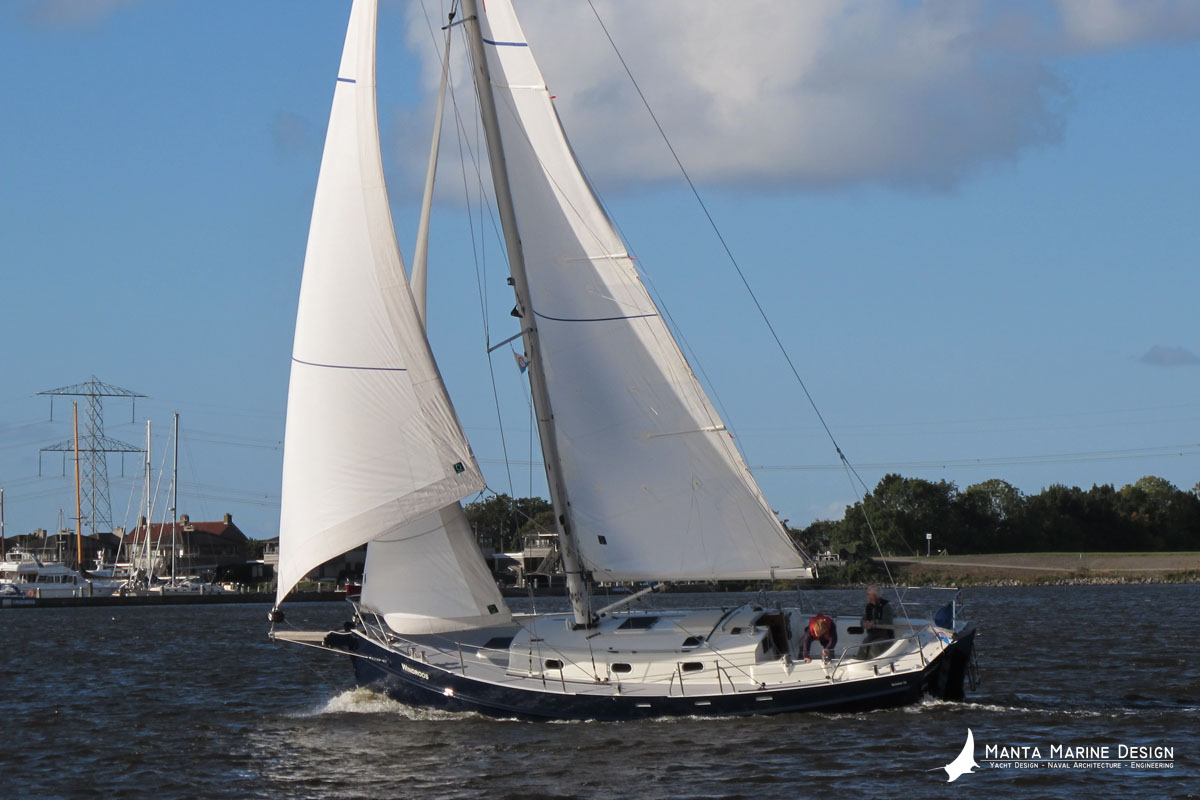

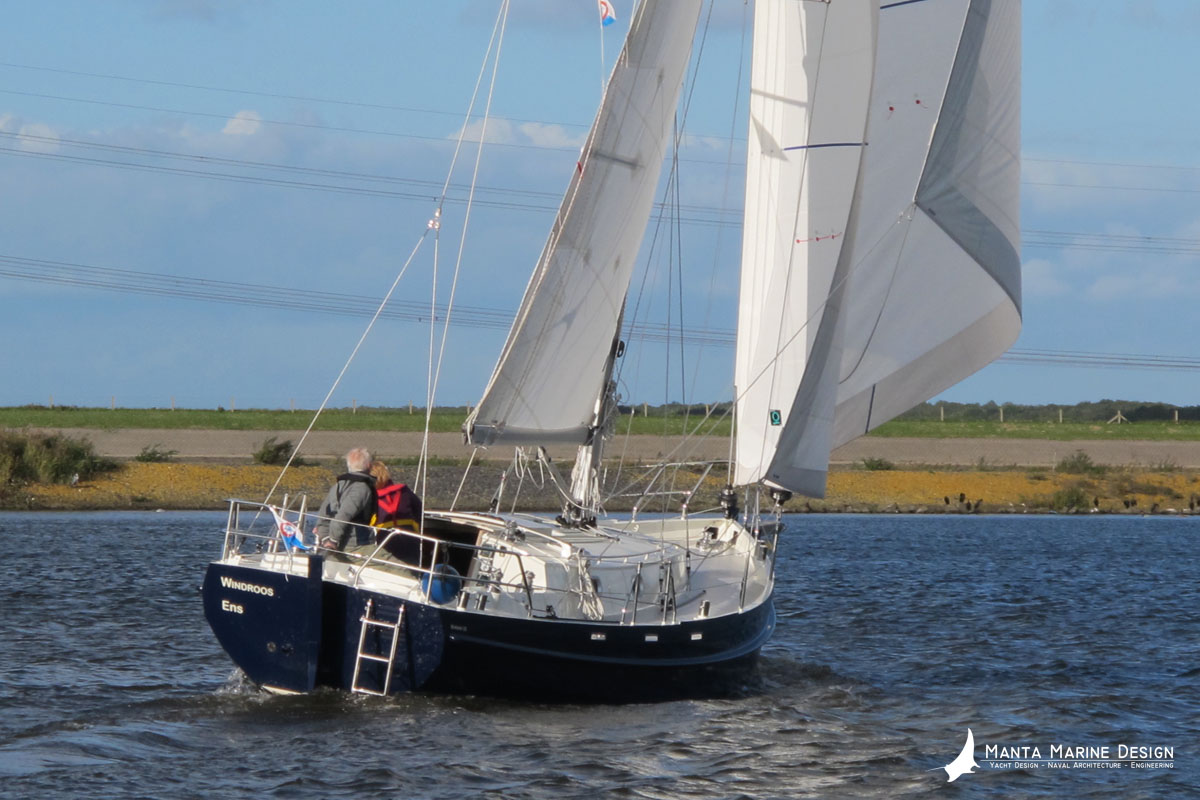

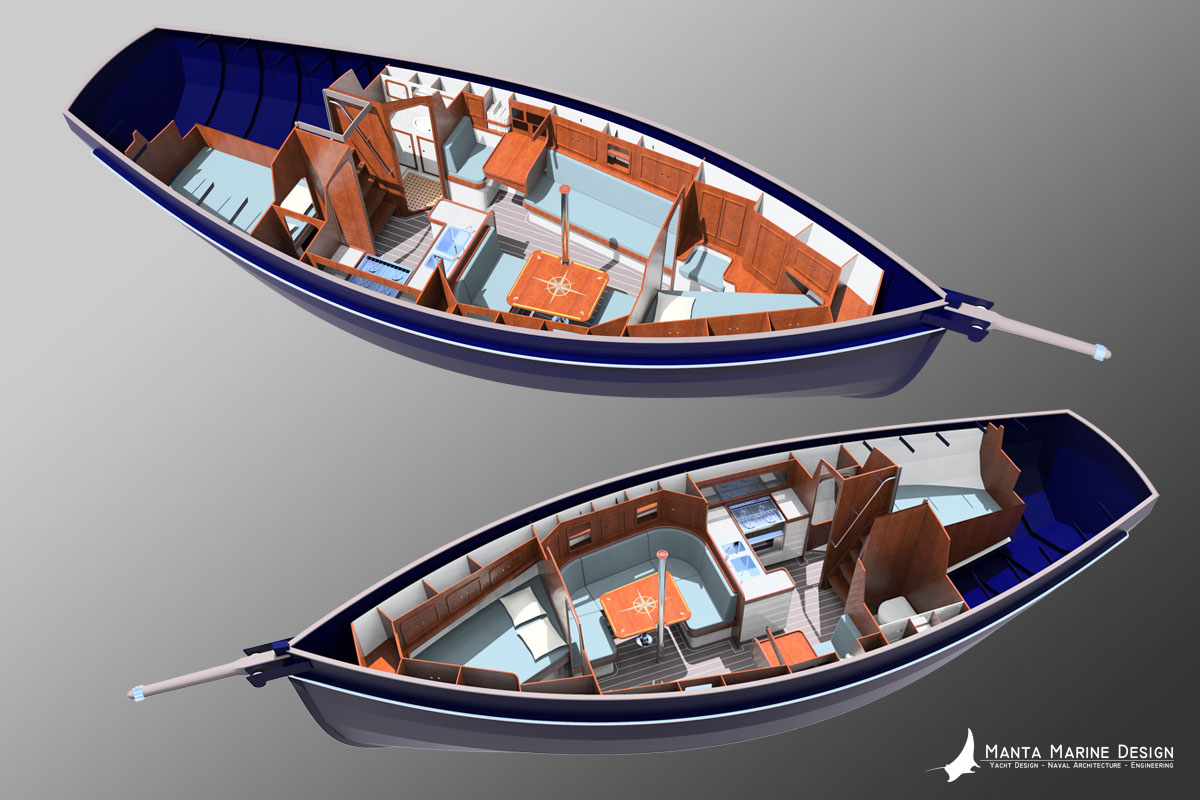

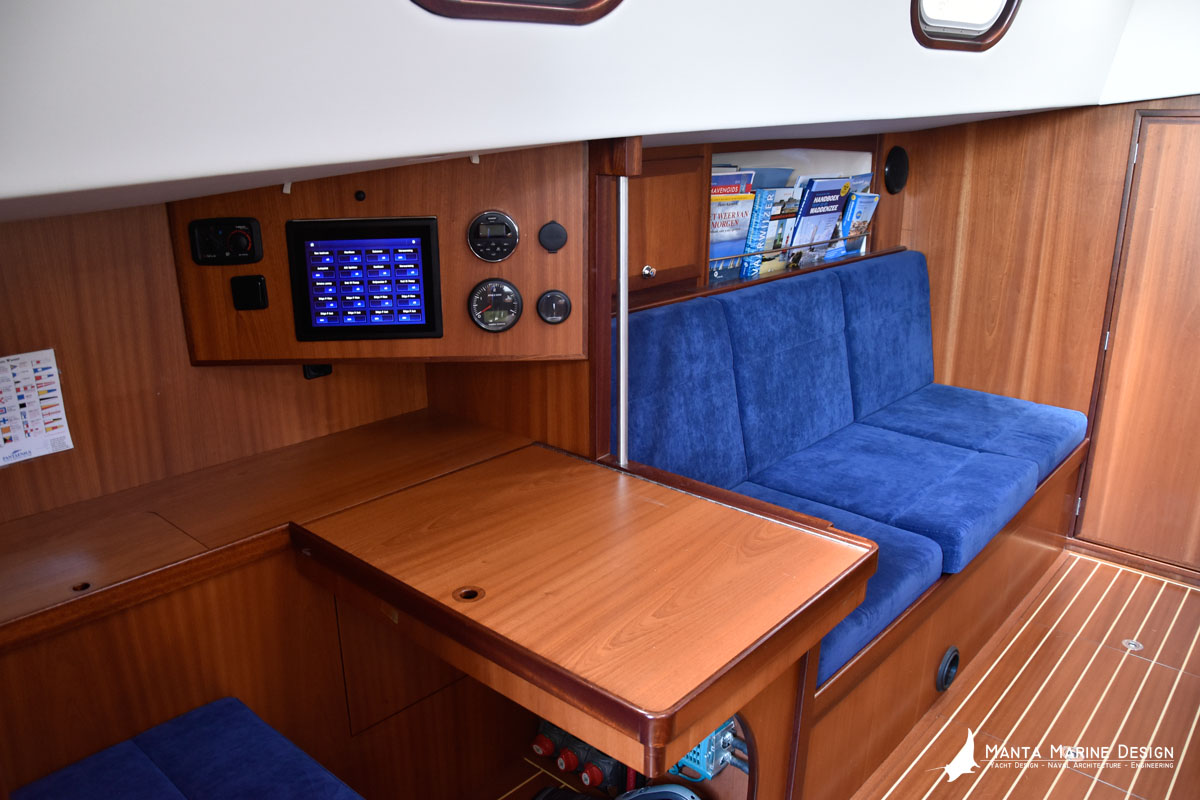

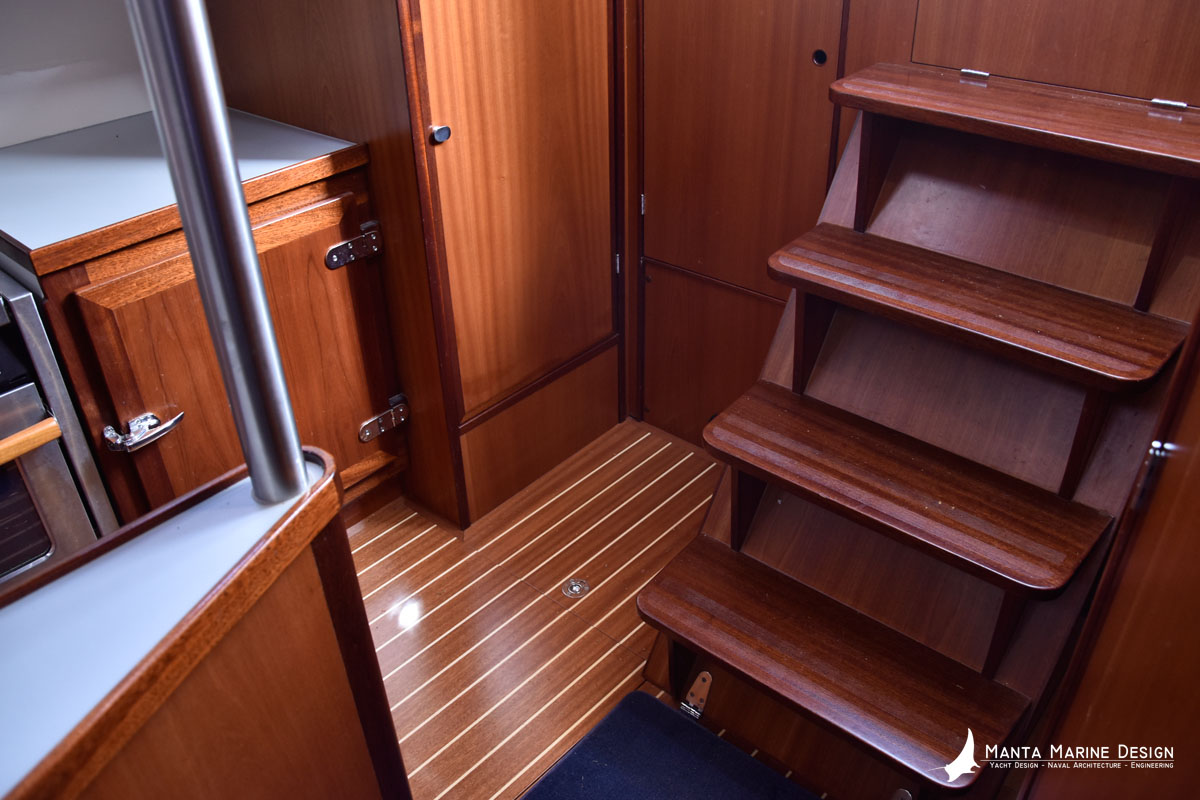

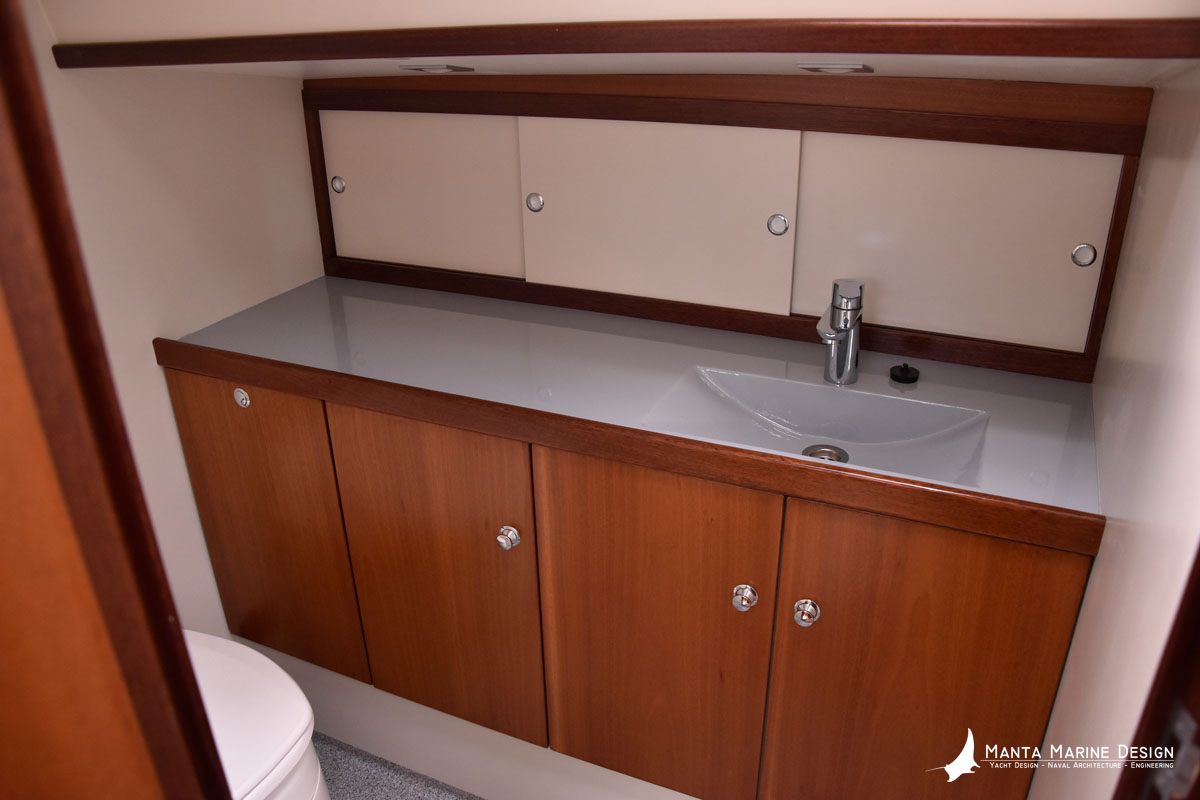

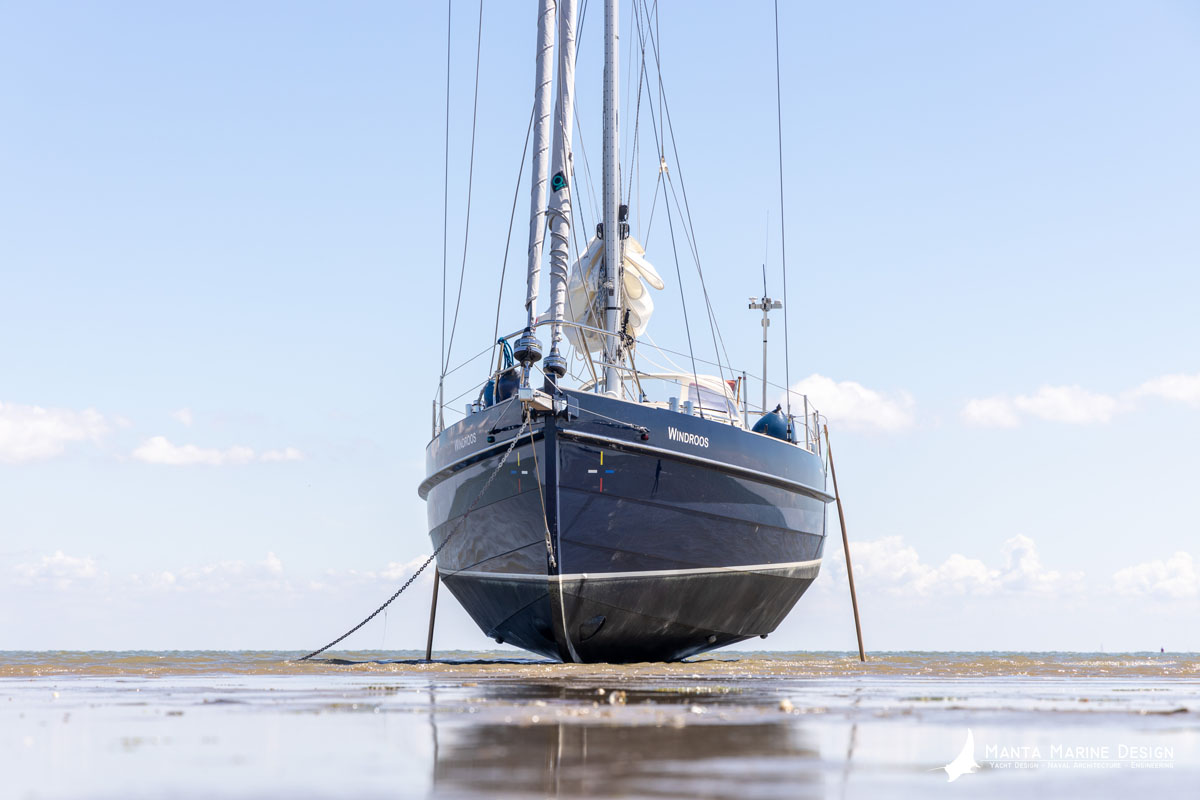

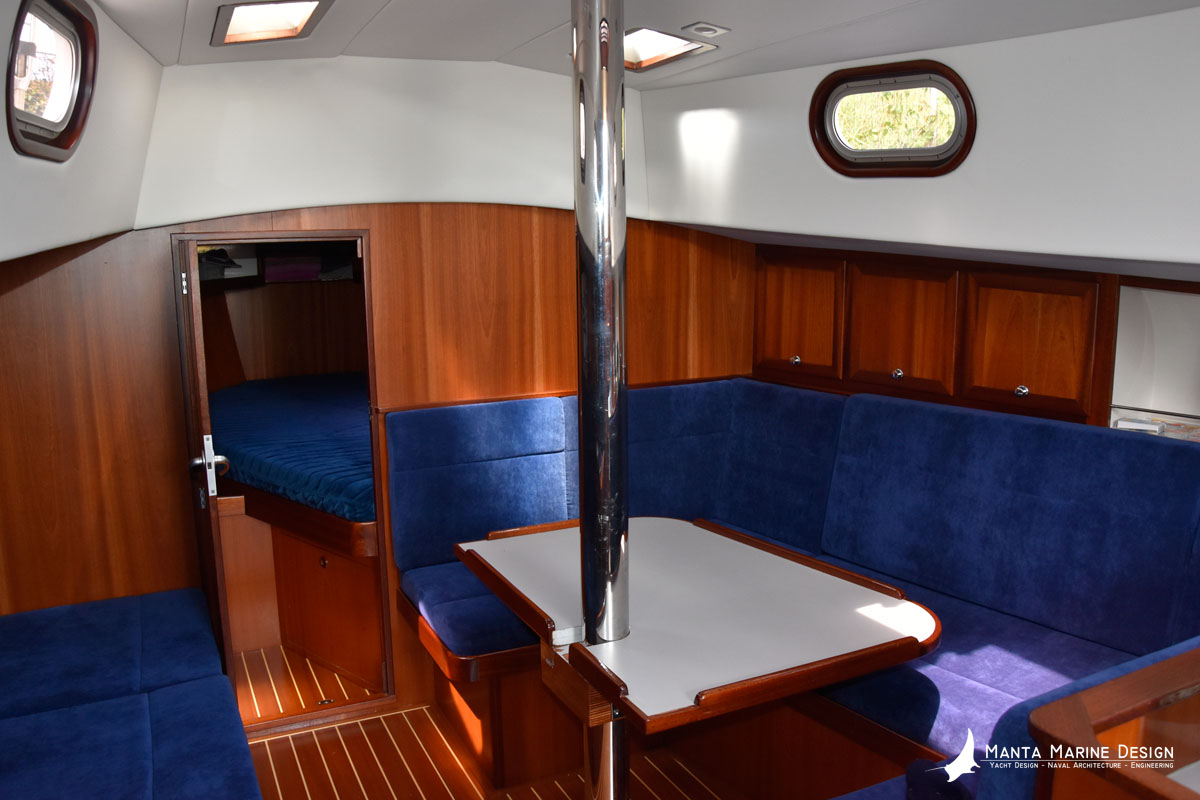

Bornrif 33SC shallow draft steel sailing yacht with centerboard - sailing1Bornrif 33SC shallow draft steel sailing yacht with centerboard - sailing2Bornrif 33SC shallow draft steel sailing yacht with centerboard - sailing3Bornrif 33SC shallow draft steel sailing yacht with centerboard - sailing4Bornrif 33SC shallow draft steel sailing yacht with centerboard - dried out 1Bornrif 33SC shallow draft steel sailing yacht with centerboard - dried out 2Bornrif 33SC shallow draft steel sailing yacht with centerboard - interior visualizationBornrif 33SC shallow draft steel sailing yacht with centerboard - interior lounge looking forwardBornrif 33SC shallow draft steel sailing yacht with centerboard - interior portside with navigation stationBornrif 33SC shallow draft steel sailing yacht with centerboard - interior galleyBornrif 33SC shallow draft steel sailing yacht with centerboard - interior looking forwardBornrif 33SC shallow draft steel sailing yacht with centerboard - interior entrance and access to aft cabinBornrif 33SC shallow draft steel sailing yacht with centerboard - interior aft cabinBornrif 33SC shallow draft steel sailing yacht with centerboard - interior head - bathroomBornrif 33SC shallow draft steel sailing yacht with centerboard - general arrangementBornrif 33SC shallow draft steel sailing yacht with centerboard - sailplan



DIMENSIONS & SPECIFICATIONS
Length OA 11.90 m (39' 2")
Length Hull 10.19 m (33' 5")
Length WL 9.45 m (31' 0")
Beam 3.75 m (12' 3")
Draught hull 1.10-2.40 m (3' 7" - 7' 10")
Sail area - up wind 81 sqm (872 sqft)
Displacement 11800 kg (26015 lbs)
Material Steel or Aluminium
Engine Power 40hp inboard diesel
Fuel Tank Capacity 400 Ltr (105 USGallons)
Water Tank Capacity 380 Ltr (100 USGallons)
Holding Tank Capacity 200 Ltr (53 USGallons)
CE-category B (offshore)

Highlighted Aspects Centerboard Keel
  Sternhung Rudder
  Multichine Hull



BORNRIF 33SC - Centerboard with Cutter Rig

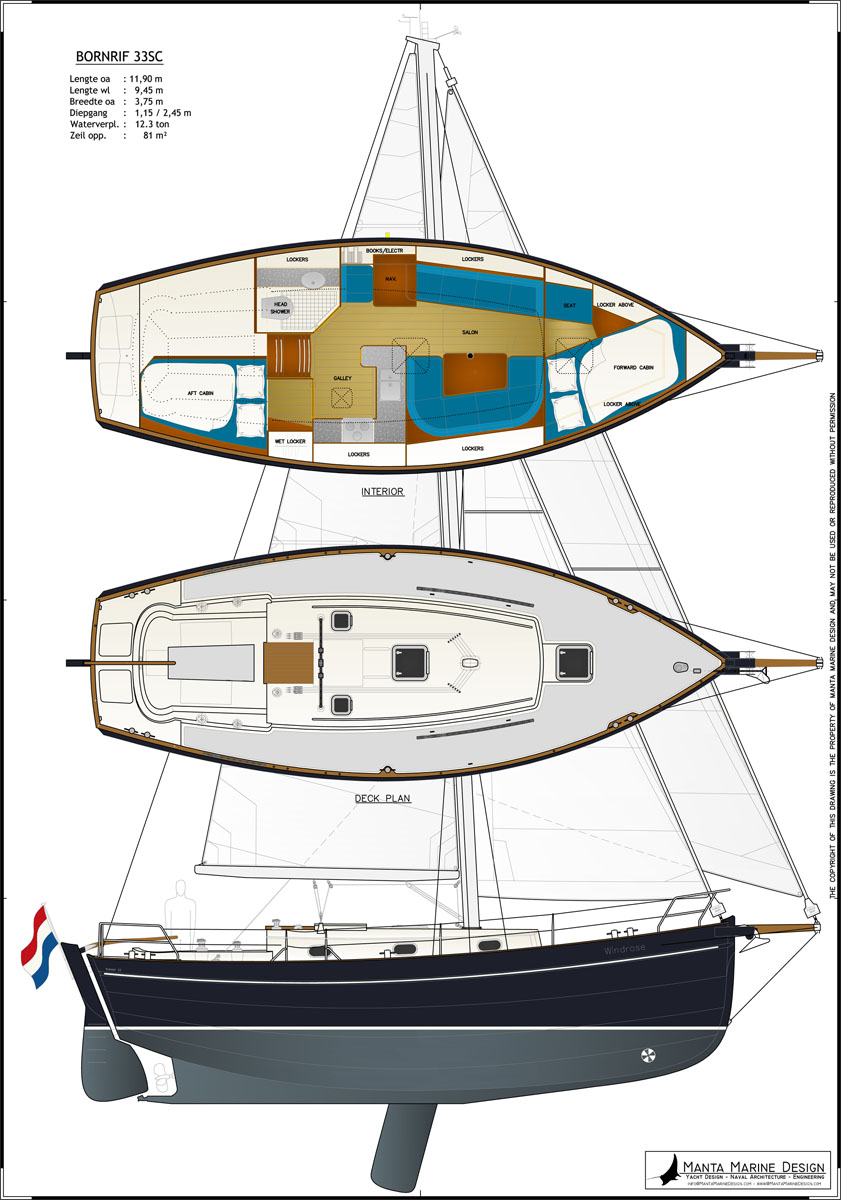

The Bornrif 33SC is a classic sailing yacht, built with modern materials and modern building techniques. The multi-chined steel or alumium hull is built up with 4 overlapping strakes. This yacht is standardly outfitted with a centerboard, but optionally also can be outfitted with with a fixed keel, see the Bornrif35SF, which is basically the same hull as the 33 but with an extended stern for more locker space and an extended superstructure to create headroom in the front cabin.

The main focus of this design is to find a fine balance between reliability, practical functionality, ergonomics and aesthetics.

The draught is 1.10m with a raised centerboard making the boat perfectly suitable for exploring the coasts, coastal estuaries and drying out on tidal flats. This is basically where the Bornrif 33SC is designed for. For passagemaking and typical ocean sailing we suggest also to have a look at the Bornrif35SF.

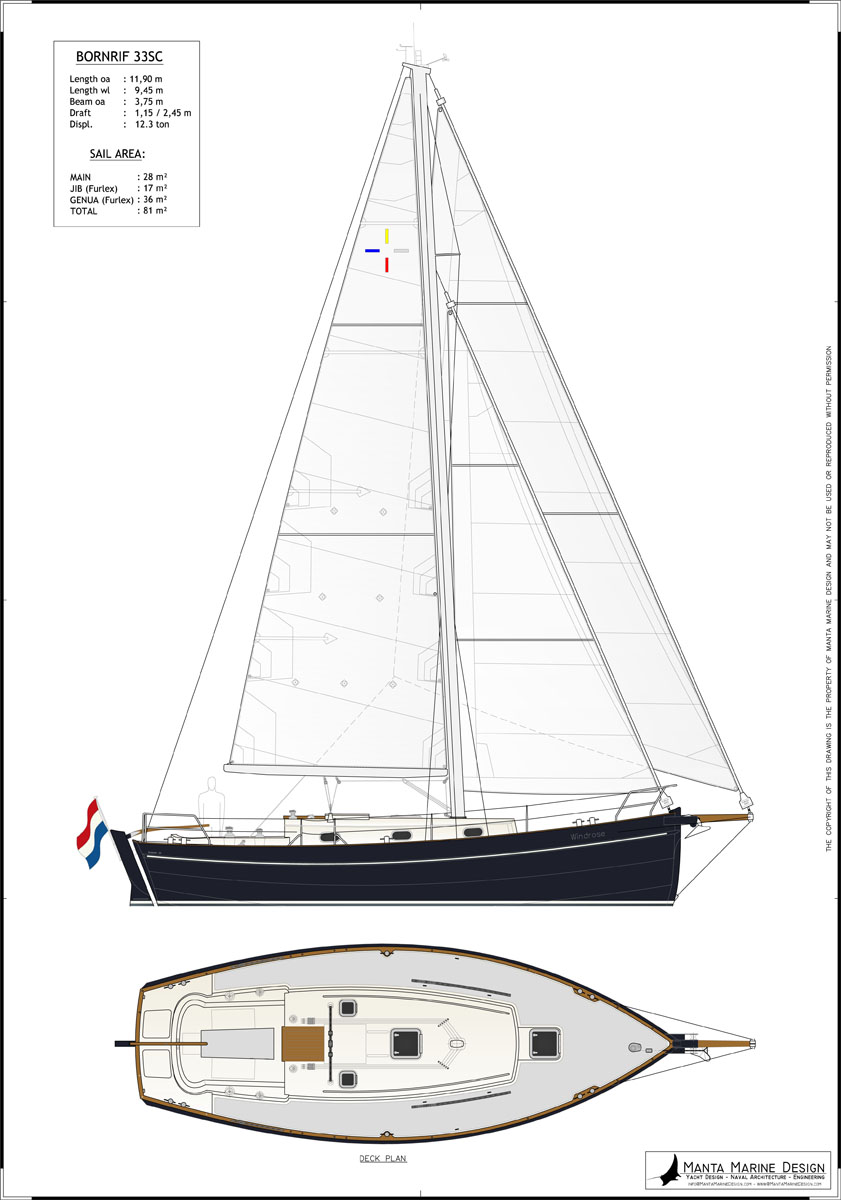

The Bornrif is standarly outfitted with a cruiser cutter rig. All sailhandling can be done from the cockpit.

INFORMATION & PLANS

BROCHURE Download
STUDY PLANS This email address is being protected from spambots. You need JavaScript enabled to view it.
BUILDING PLANS & KIT This email address is being protected from spambots. You need JavaScript enabled to view it.
