HANZEYAWL - 5.7m Wooden Sailing Dinghy

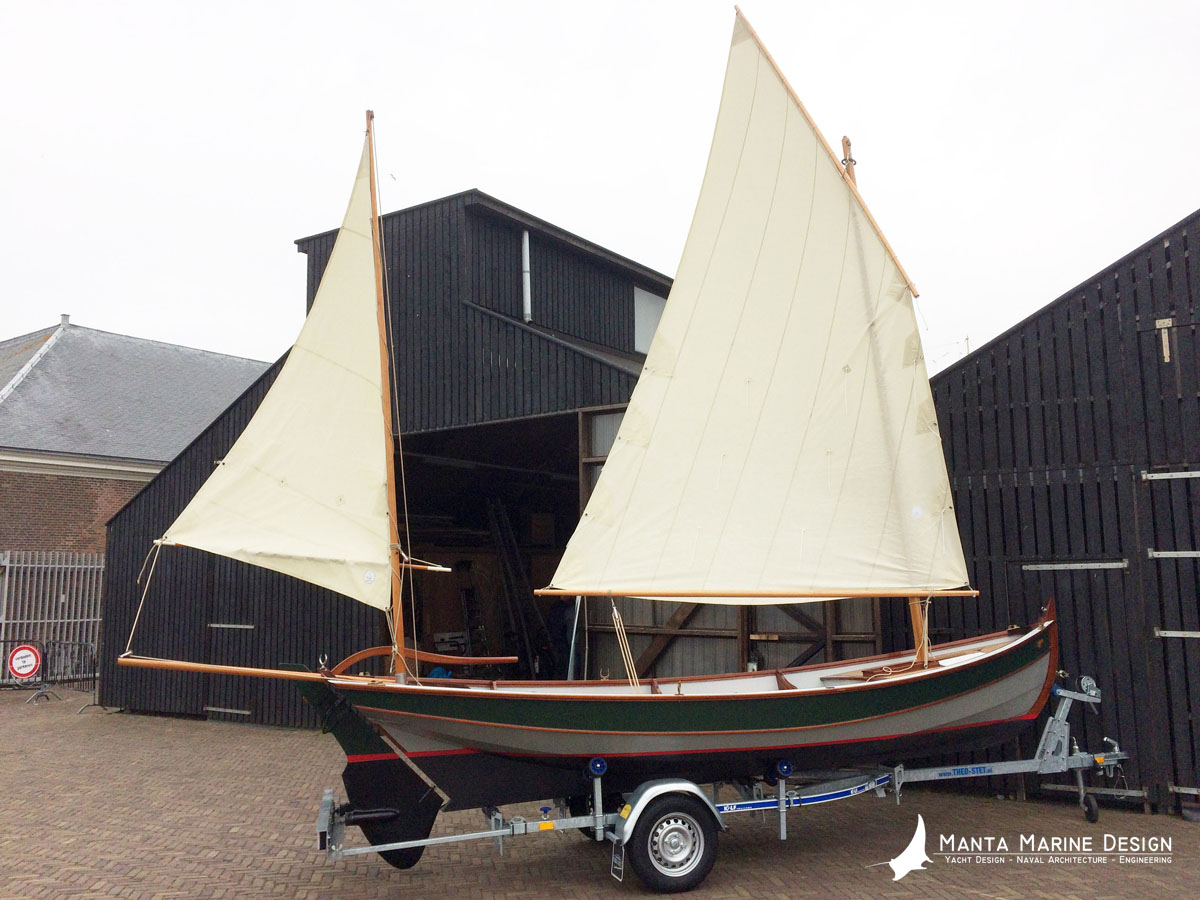

5.7m sailing dinghy designed by Manta Marine Design in cooperation with the Bootbouwschool - image15.7m sailing dinghy designed by Manta Marine Design in cooperation with the Bootbouwschool - image25.7m sailing dinghy designed by Manta Marine Design in cooperation with the Bootbouwschool - image3

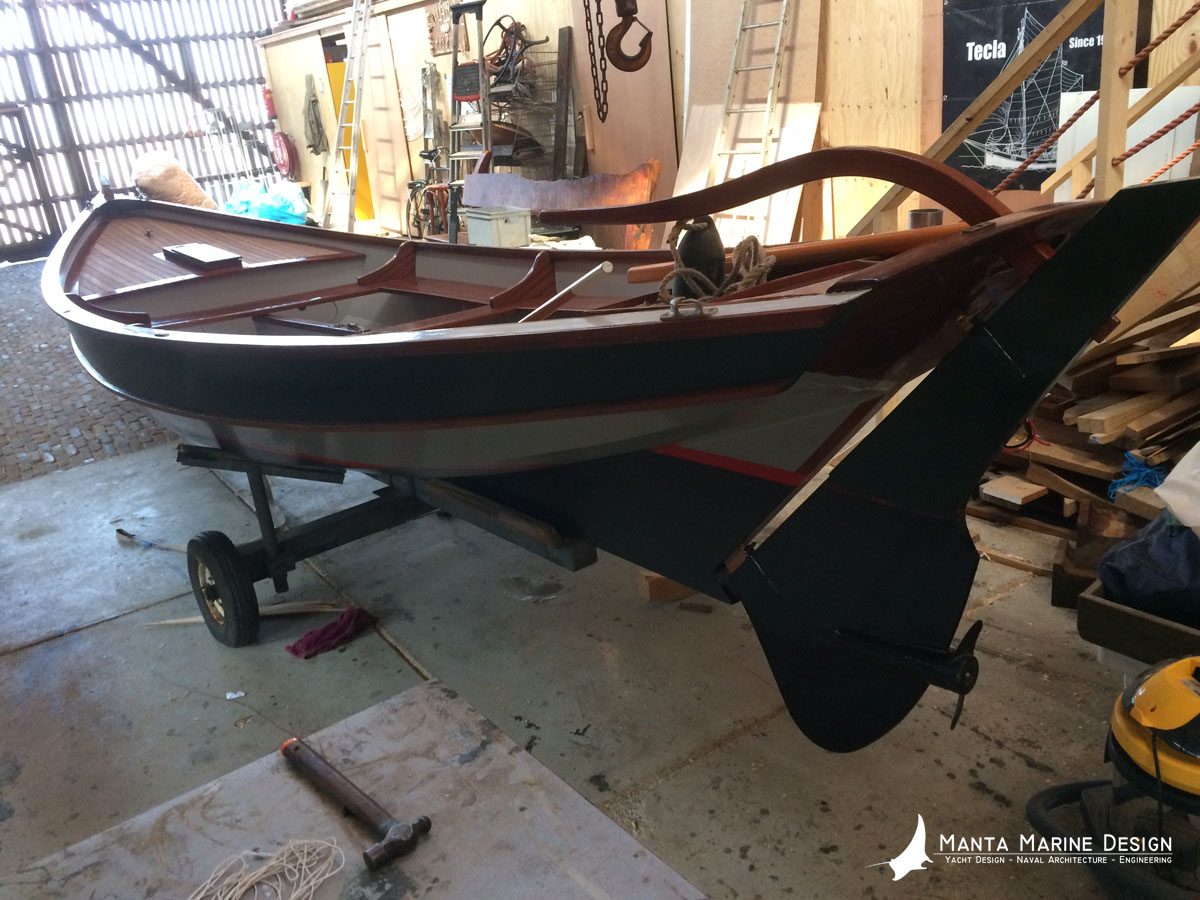

Hanzeyawl Build by HMC students Amsterdam Hanzeyawl build by students of the HMC in Amsterdam (Furniture and woodworking College) under guidance of Bert van BaarHanzeyawl started with a course from 'Bootbouwschool' and finished by one of the participants

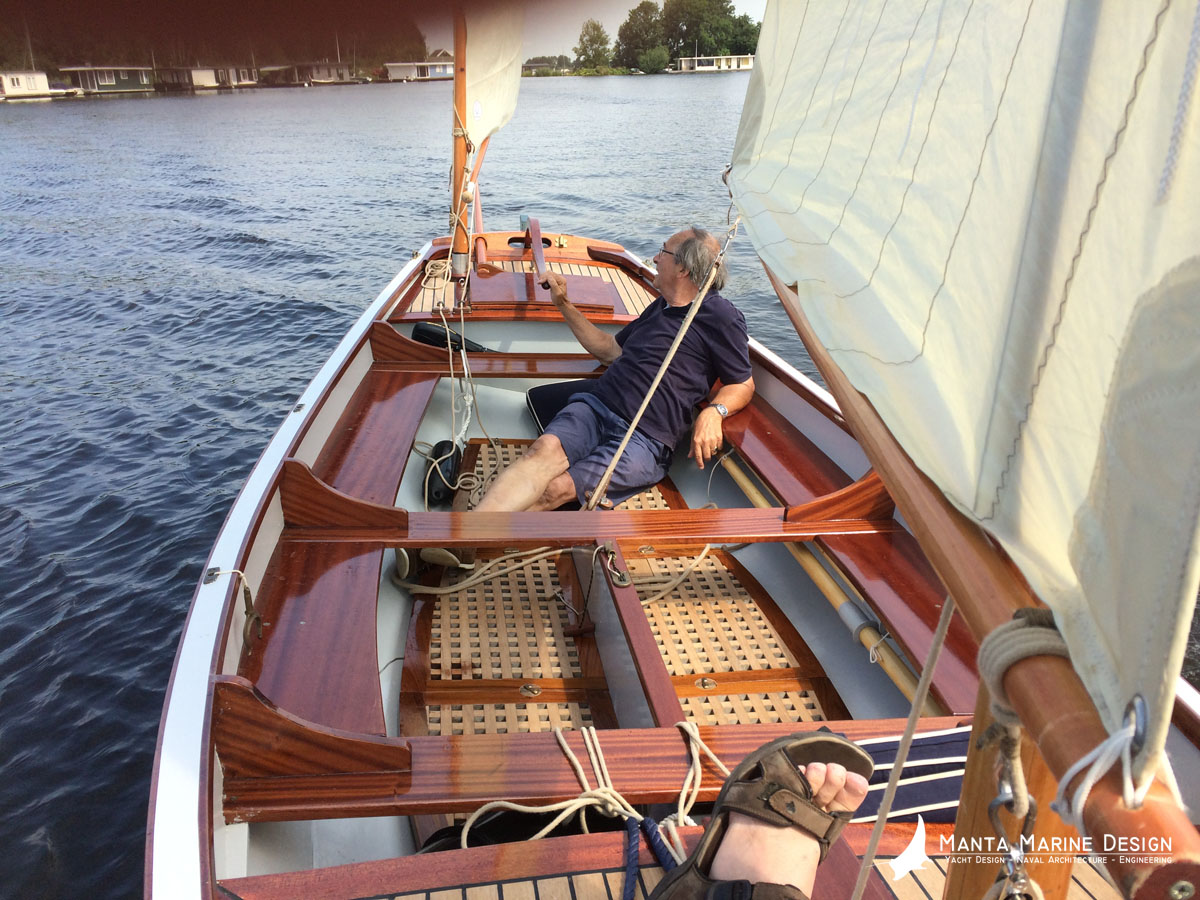

Photos of finished projects by Bert van Baar of the Bootbouwschool in the Netherlands



DIMENSIONS & SPECIFICATIONS
Length over all 5.90m
Beam 1.70m
Sail Area 11sqm
Material Marine Plywood
Specification Centerboard
Sternhung rudder

Hanze Yawl - 5.7m Sailing Dinghy

The Hanze Yawl is a mix between a Newfoundland Trapskiff and a Swedish Blekinge Eka. The design has been developed in close cooperation with Bert van Baar from the wooden boatbuilding school 'Bootbouwschool' in Den Helder, the Netherlands. The first 2 boats have been build in a course at the Bootbouwschool and some by students of the HMC (Hout en Meubilerings College) in Amsterdam, which is a Furniture and Woodworking college.





 PLANS & PURCHASE INFORMATION (prices excl BTW/VAT)

BOUWFOTOS / BUILDING PICTURES link to album

FULL PLANS (digital or hardcopy, hardcopy will have an additional fee for handling and postage)

the following information is provided:

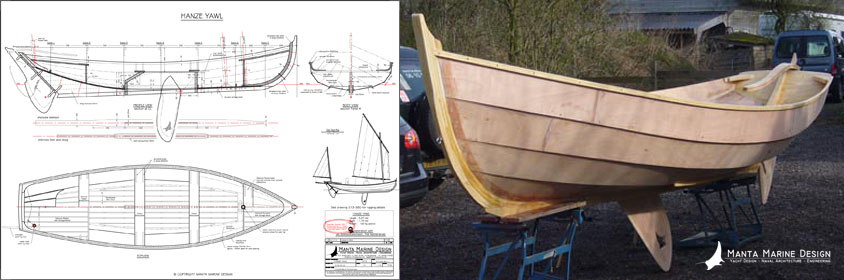

  • Constructionplan with details

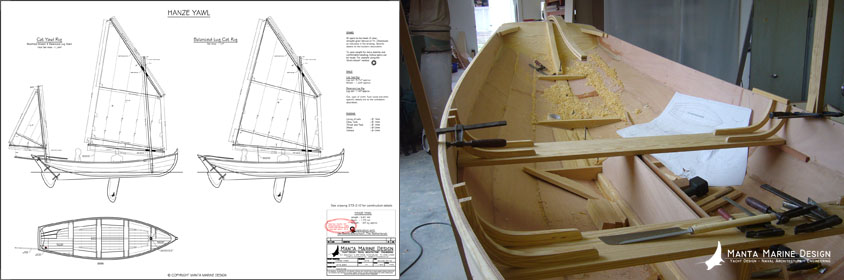

  • Sailplan (2 versions; balanced lug cat rig or balanced lug cat rig with yawl)
  • Templates/measurement data for stem, transom, centerboard, rudder, buildingframes

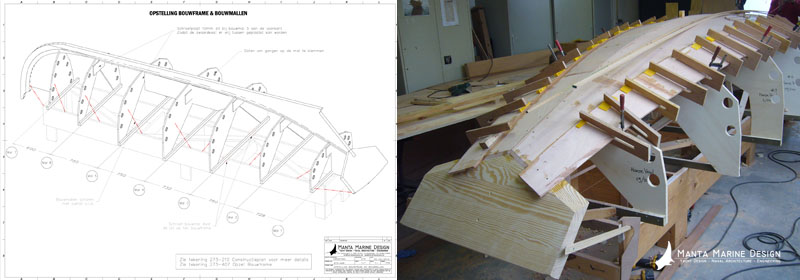

  • Buildingframe assembly drawing



Euro 200

CNC BUILD KIT contact us
