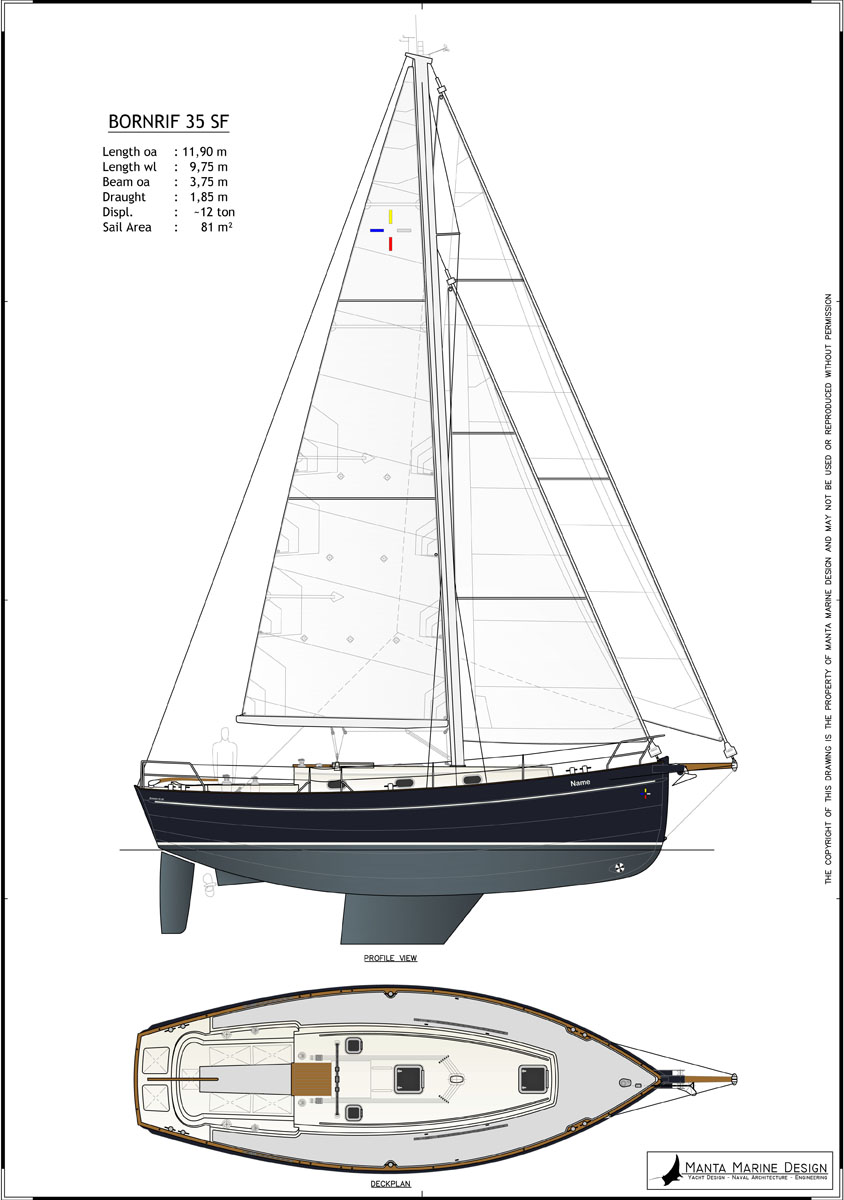

BORNRIF 35SF

Bornrif 33SC shallow draft steel sailing yacht with centerboard - sailing1Bornrif 35SF - Steel cruiser sailing yacht - CE-A

photo shows the Bornrif 33SC as it is very similar



GENERAL DESCRIPTION

The Bornrif is a classic sailing yacht, built with modern materials and modern building techniques. The multi-chined steel or alumium hull is built up with 4 overlapping strakes. The Bornrif 35sf is based on the Bornrif 33SC, but is outfitted with a fixed keel. Besides that compared to the 33SC it has the hull extended at the stern for more storage and as such doesn't have a sternhung rudder. That cabin is extended forward for headroom in the front cabin.

The main focus of the design is comfortable long range ocean sailing and passage making.

The Bornrif is standarly outfitted with a cruiser cutter rig. All sailhandling can be done from the cockpit.



DIMENSIONS & SPECIFICATIONS
Length OA 11.90 m (38' 11")
Length Hull 10.50 m (34' 6")
Length WL 9.95 m (31' 0")
Beam 3.75 m (12' 3")
Draught hull 1.85 m (6' 1")
Sail area - up wind 81 sqm (872 sqft)
Displacement 12 t (26015 lbs)
Material Steel or Aluminium
Engine Power 50hp inboard diesel
Fuel Capacity 400 Ltr (105 USGallons)
Water Capacity 380 Ltr (100 USGallons)
Holding Capacity 200 Ltr (53 USGallons)
CE-category A (ocean)

Highlighted Aspects Fixed Keel
  Extended Cabin
  Multichine Hull



INFORMATION & PLANS

BROCHURE -
STUDY PLANS This email address is being protected from spambots. You need JavaScript enabled to view it.
BUILDING PLANS & KIT -
